Chemical storage and Warehouse Lighting
Chemical storage and warehouse required highest requirements on safety; therefore, LED lighting is installed for working environments with hazardous substances. Installing LED lighting offers less maintenance and contributes to CO2 reduction. LED lighting is less pollution through direct and asymmetrical lighting and is therefore environmentally friendly.
LUX Levels for Chemical Storage
| Application | Horizontal Illuminance
Eave (LUX) |
Horizontal Illuminance
Emin/Eave |
Ra | Glare | Notes |
|---|---|---|---|---|---|
| Remote-Operated Processing Installations | >50 | >0.40 | >20 | – | – |
| Automated Processing Installations | >150 | >0.40 | >40 | <28 | – |
| Manned Aisles – Bulk Storage – Drums and palletised tanks | 100-300 | >0.40 | >70 | <30 | – |
| Manned Work Stations | >300 | >0.60 | >80 | <25 | – |
| Precision Measuring | >500 | >0.60 | >80 | <19 | – |
| Production | >500 | >0.60 | >80 | <22 | – |
| Inspection | >1000 | >0.70 | >90 | <16 | CCT < 5000K |
| Finishing | >750 | >0.70 | >80 | <19 | – |
| Walkways (External) | >50 | >0.25 | >20 | <50 | – |
| Filling (Risk Free) | >50 | >0.40 | >20 | <45 | – |
| Filling (Hazardous) | >100 | >0.40 | >40 | <45 | – |
| Fuel Loading | >100 | >0.40 | >20 | <45 | – |
| Repair | >200 | >0.50 | >45 | <45 | – |
LUX Levels for Warehouse Lighting
| Application | Typical Use | Horizontal Illuminance
Eave (LUX) |
Horizontal Illuminance
Emin/Eave |
Ra | Glare |
|---|---|---|---|---|---|
| Main (Forklift) Aisles | Large Item (Pallet) Storage | 100-200 | >0.5 | >70 | <30 |
| Pedestrian Aisles | Small Item (Box) Storage | 200 | >0.5 | >70 | <30 |
| Loading Bays | – | 300 | >0.5 | >70 | <30 |
IMPORTANT NOTE: data is compiled from chemical storage and warehouse-specific lighting publications. However, these are recommendations only; careful consideration must go into every unique environment.
Related Products

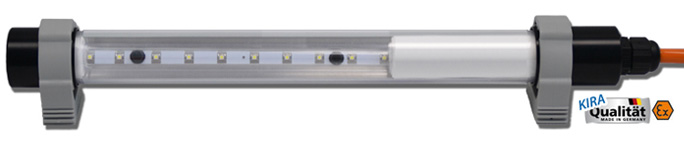

KE-LED-EX 3010 | ATEX LED TUBE LUMINAIRE

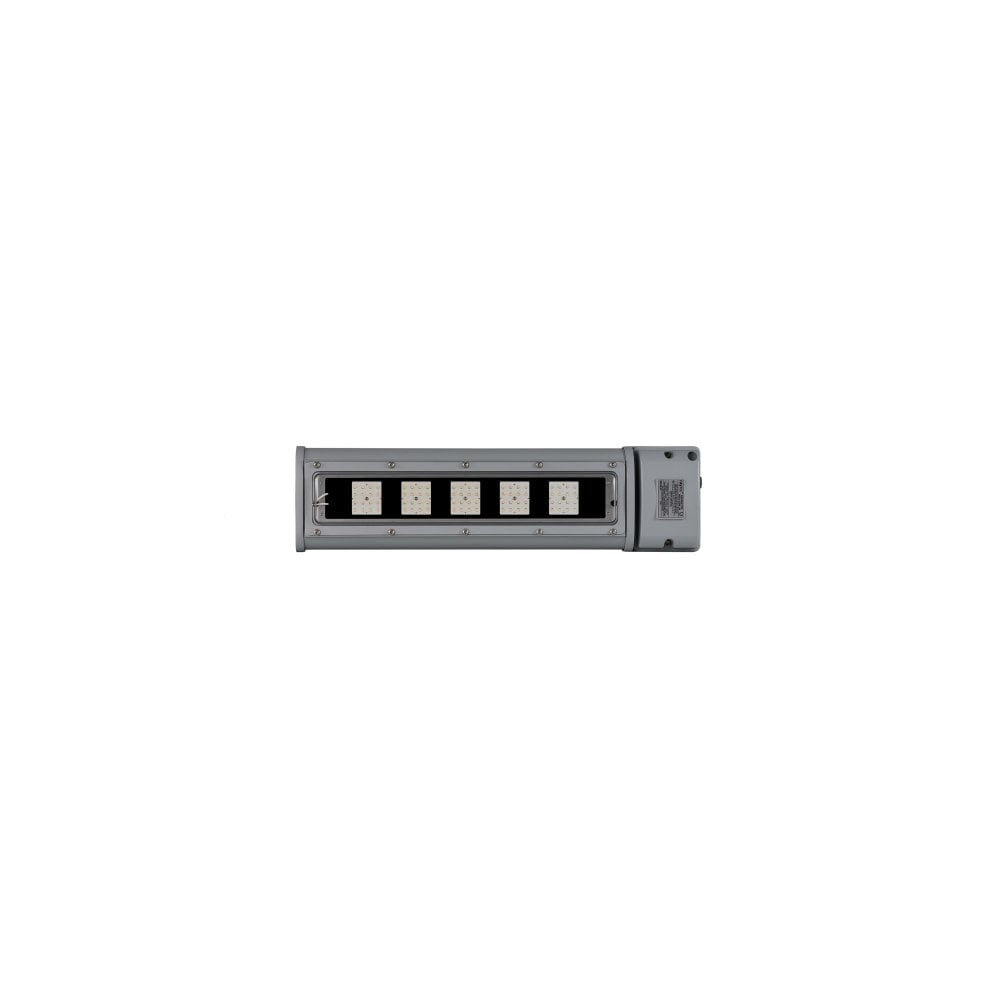

SPARTAN Linear WL84 2ft Linear Zone 1/21 Essential 3,524 Lumens (Gen II)

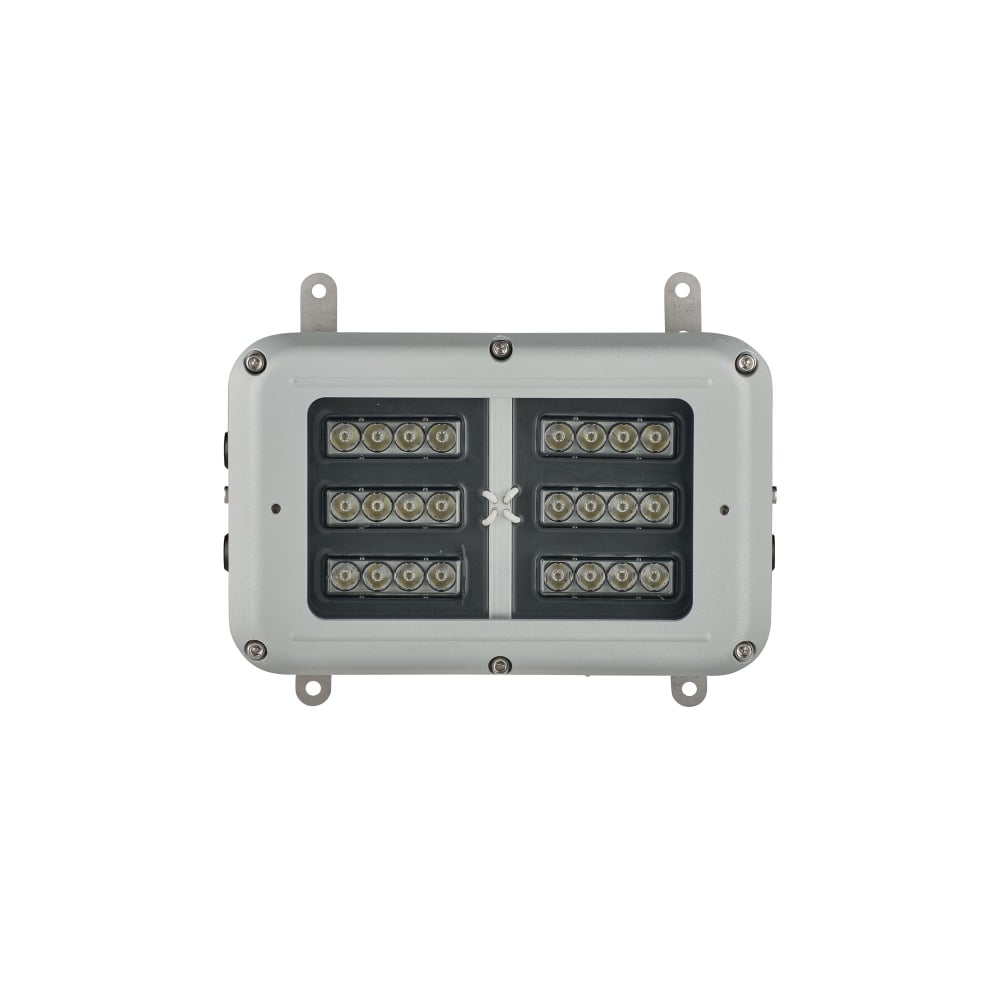

SPARTAN Bulkhead BL24 Bulkhead Zone 1/21 2,500 Lumens
SPARTAN Linear WL168 4ft Linear Zone 1/21 Intelligent Emergency 6,130 Lumens (Gen II)

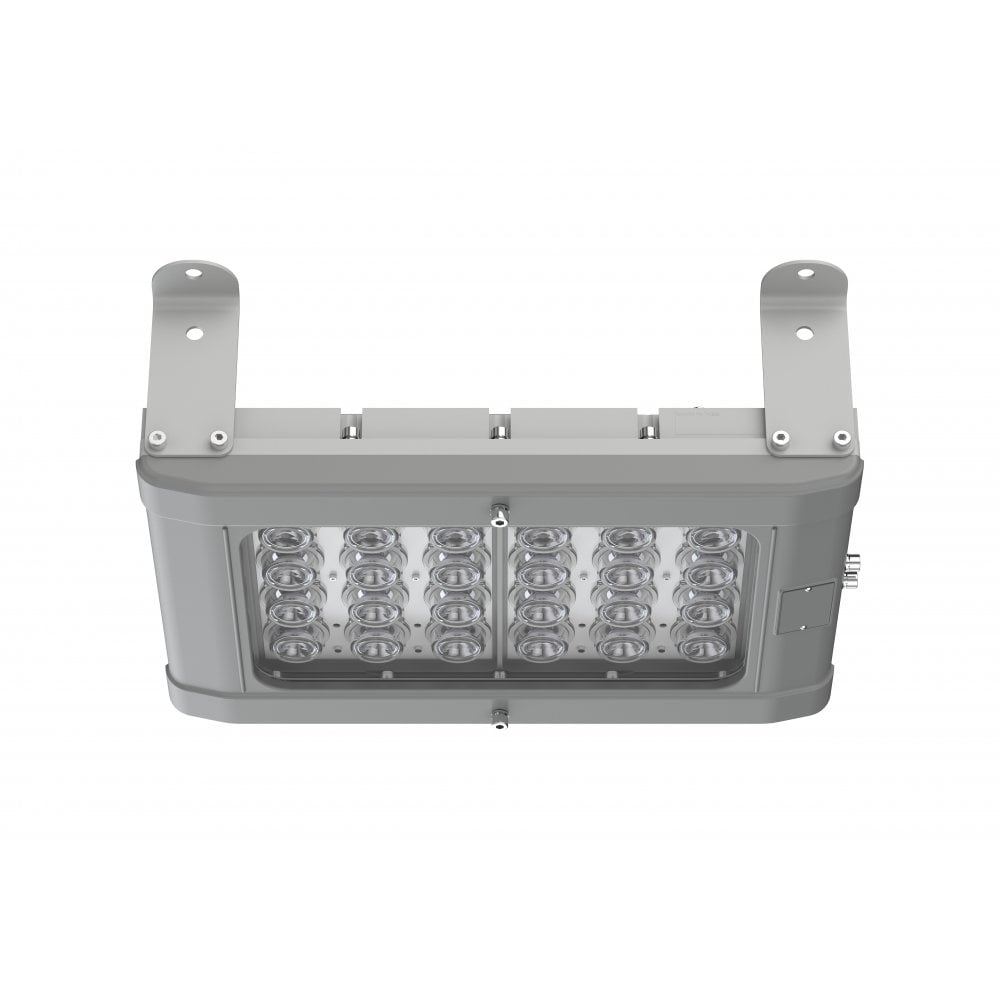

SPARTAN BAYHPBY25K High Power Bay Light Zone 21 25,000 Lumens

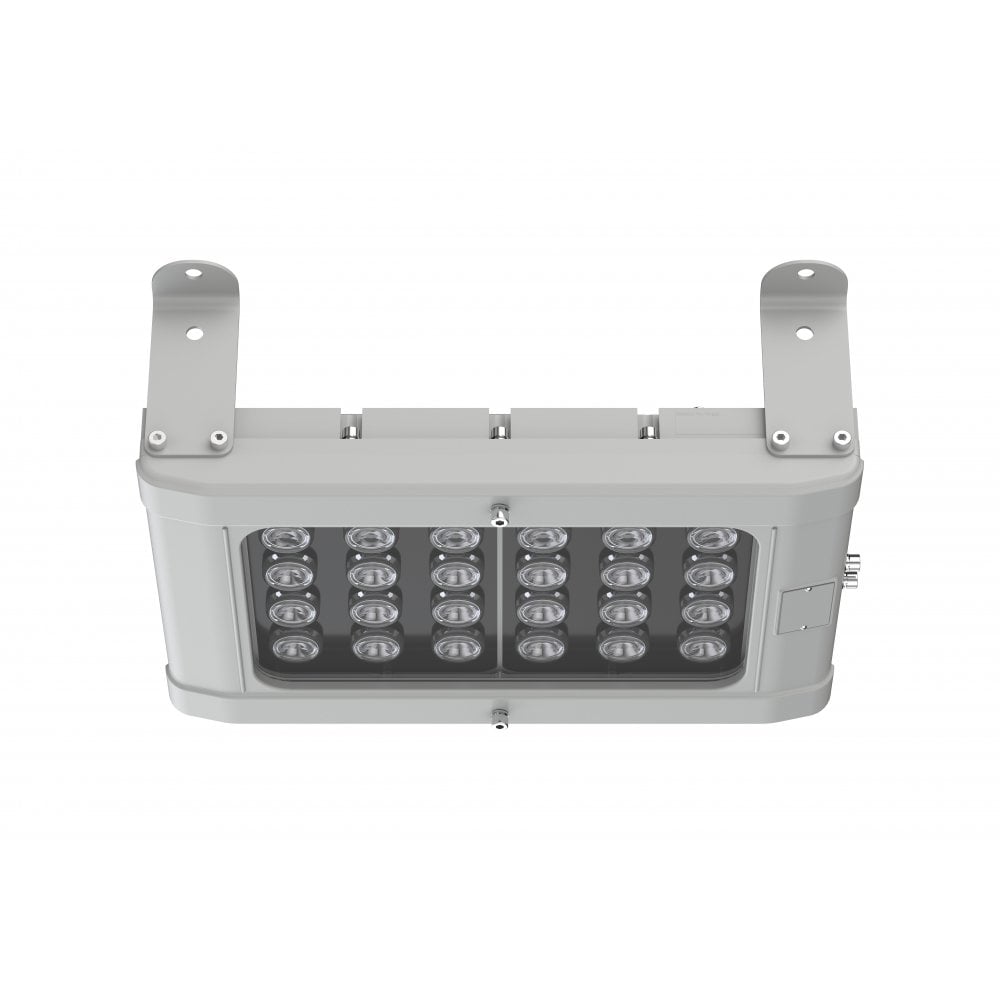

SPARTAN BAYHPBY15K High Power Bay Light Zone 1/21 15,000 Lumens
Common challenges to lights fixtures in chemical facilities/ storage warehouses are high temperatures, presence of gases and dust. Our fixtures can withstand extreme ambient temperatures, mechanical stress and they are resistant to chemical fumes, moisture and dust. Depending on the height of mounting the fixtures we can design, supply and install the linear or high bay lights to meet the required lux level.
