Tank Farm Lighting
Distilleries, petrochemical companies, and chemical processors are all equipped with typical tank farms or storage tanks that hold hazardous liquids, compressed gases or other mediums used for various manufacturing processes. A combination of low intensity lights and high intensity lights are necessary at each level so that the tank farms are visible from every angle. High intensity lights are also installed to always recognize the tank farms.
Lux levels for tank farms
| Application | Typical Use | Horizontal Illuminance
Eave (LUX) |
Horizontal Illuminance
Emin/Eave |
Ra | Glare | Notes |
|---|---|---|---|---|---|---|
| Processing Areas | – | >300 | >0.5 | >70 | <50 | Indoor |
| High-risk Filling Areas | – | >300/50* | >0.5 | >70 | <50 | Outdoor* |
| Low-risk Filling Areas | – | >100 | >0.5 | >70 | <50 | – |
| Walkways | Transit | >100/50* | >0.5 | >70 | <50 | Outdoor* |
| Stairs and Landings | Transit | >100/50* | >0.5 | >70 | <50 | Outdoor* |
| Sludge Chambers | – | >300 | >0.5 | >70 | <50 | – |
| Emergency Lighting | High risk | 15% of Normal Illuminance |
IMPORTANT NOTE: data is compiled from factory-specific lighting publications. However, these are recommendations only; careful consideration must go into every unique environment.
Related Products
SPARTAN Linear WL84 2ft Linear Zone 1/21 Essential 3,524 Lumens (Gen II)

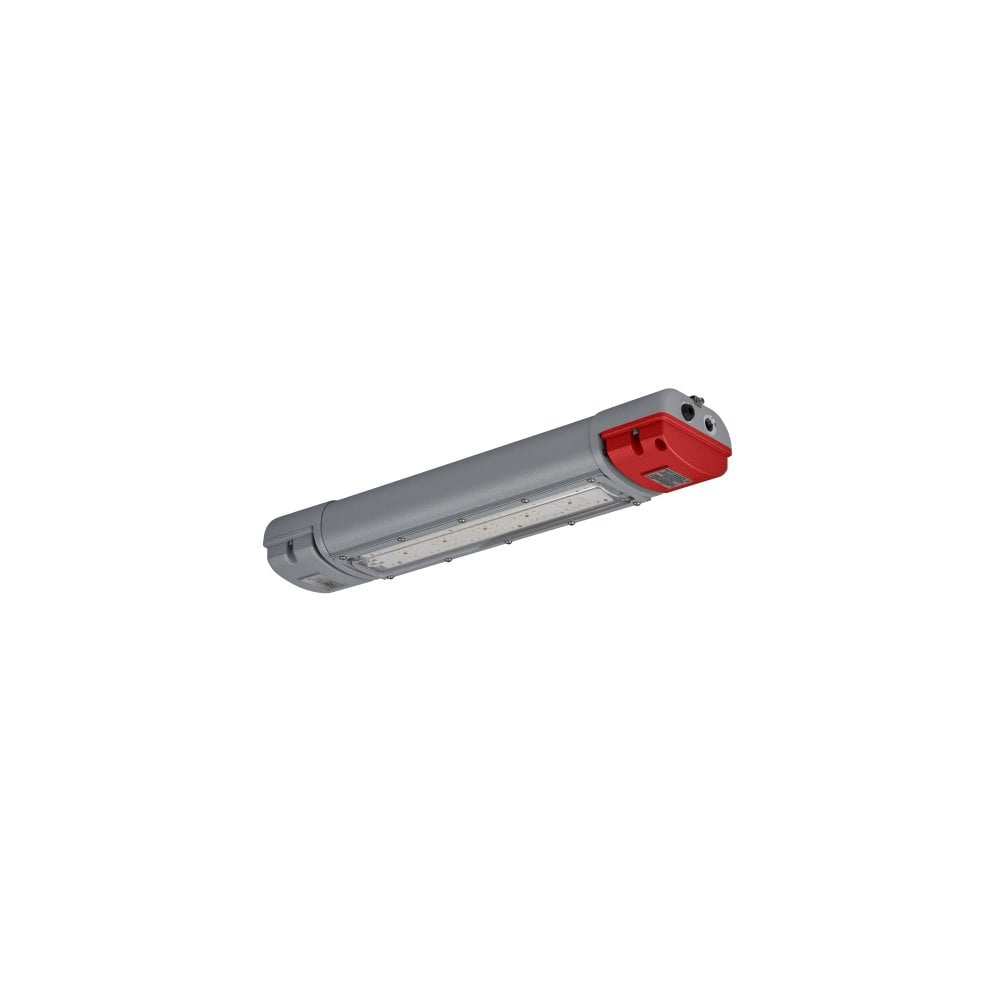

SPARTAN Linear WL84 2ft Linear Zone 2/22 Intelligent Emergency 3,524 Lumens (Gen II)
Pendant light fitting PLFM 20 LED
SPARTAN Linear WL168 4ft Linear Zone 1/21 Intelligent Emergency 6,130 Lumens (Gen II)

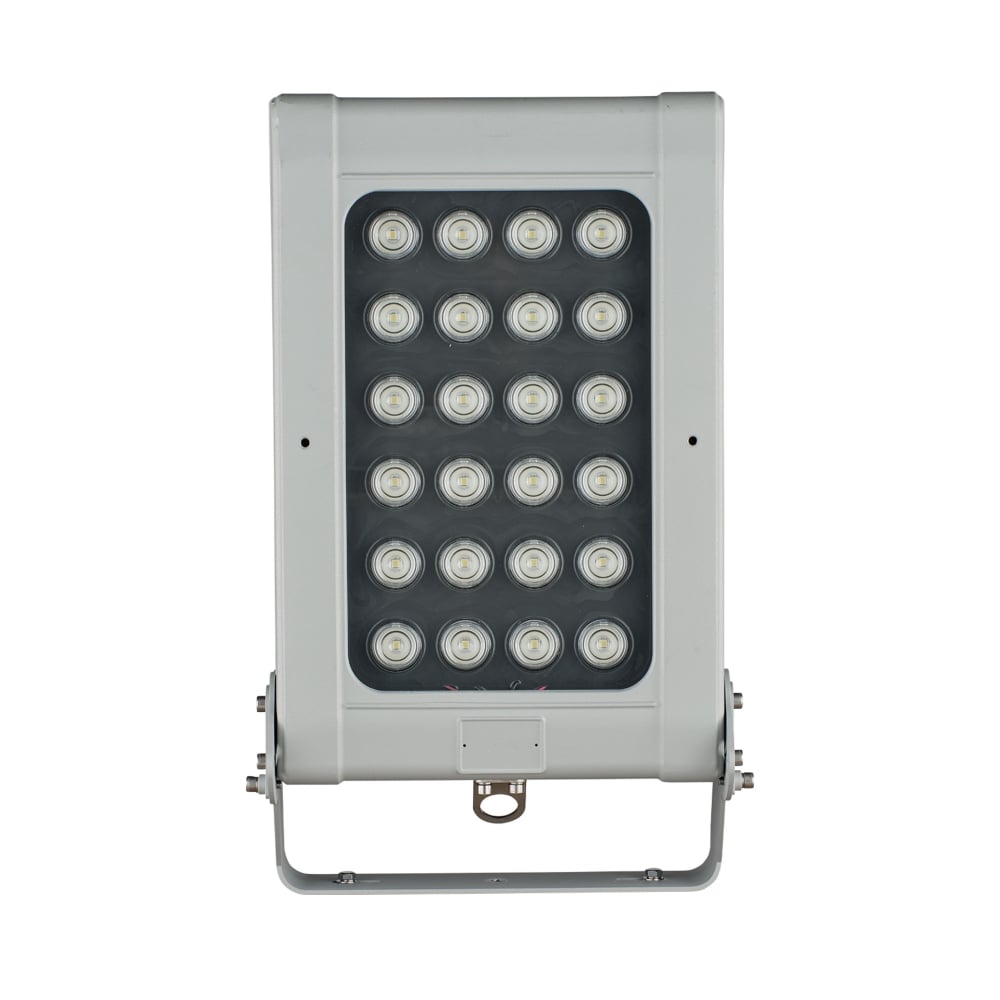

HPFL25K High Power Floodlight Zone 1/21 25,000 Lumens
Tank farms will need both portable and fixed explosion proof light fittings. Our Zone 0, Zone 1 and Zone 2 portable lights are used for tank cleaning and maintenance which are ATEX and IECEX certified LED lights. For external lighting of tank farms, commonly used pendant light fitting, floodlights and linear fixtures are also certified to use in explosive gas and dust environment.
